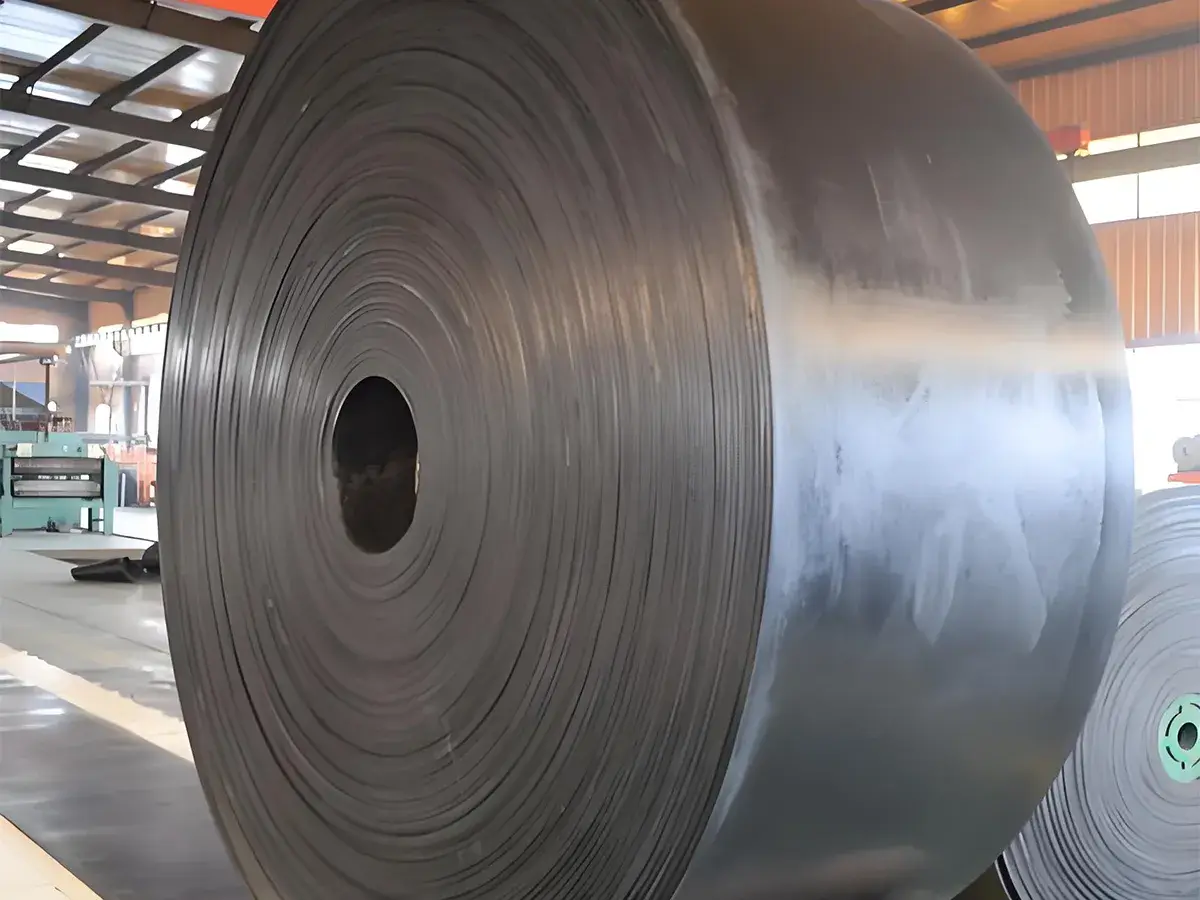

Oil Resistant Conveyor Belt
Oil-resistant conveyor belts are designed for handling oily substances and surroundings with oils or chemical solvents. A carcass composed of cotton, nylon (NN), or polyester (EP) is combined with a high-acrylonitrile nitrile (NBR) rubber cover, processed via calendering, forming, and vulcanisation.
Key Advantages
- NBR's molecular structure strongly resists oil penetration under long-term oil contact; the belt does not swell, blister, delaminate, or harden.
- A molded sealed-edge construction wraps the top and bottom covers around the carcass edges so no fabric is exposed. This closes the capillary path for oil to wick in from the belt sides, preventing edge rot and inter-ply separation.
Parameters
Physical properties in heat resistance testing:
| Tensile Strength | Elongation at Break | Maximum Abrasion Loss | Polymer Rubber | Working Temperature | |
| MPa | % min | mm³ | Degree Centigrade | ||
| OR | 15 | 300 | 150 | NBR Blended | -30 to +60 |
| MOR | 12 | 300 | 300 | NBR Blended | -30 to +50 |
| OHR | 15 | 400 | 180 | NBR Blended | +100 lump |
